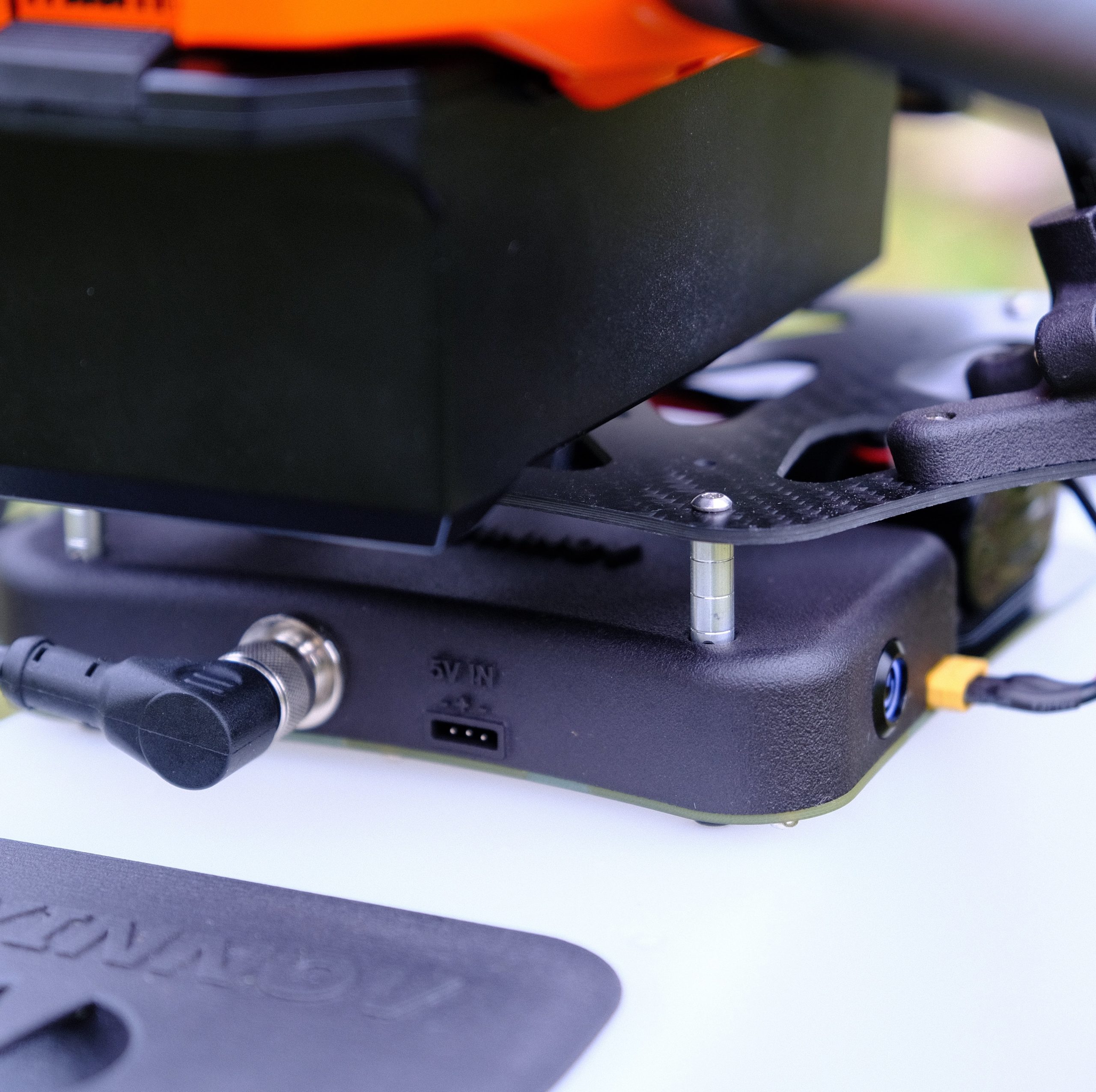

tbox connectivity
tbox atmosphere

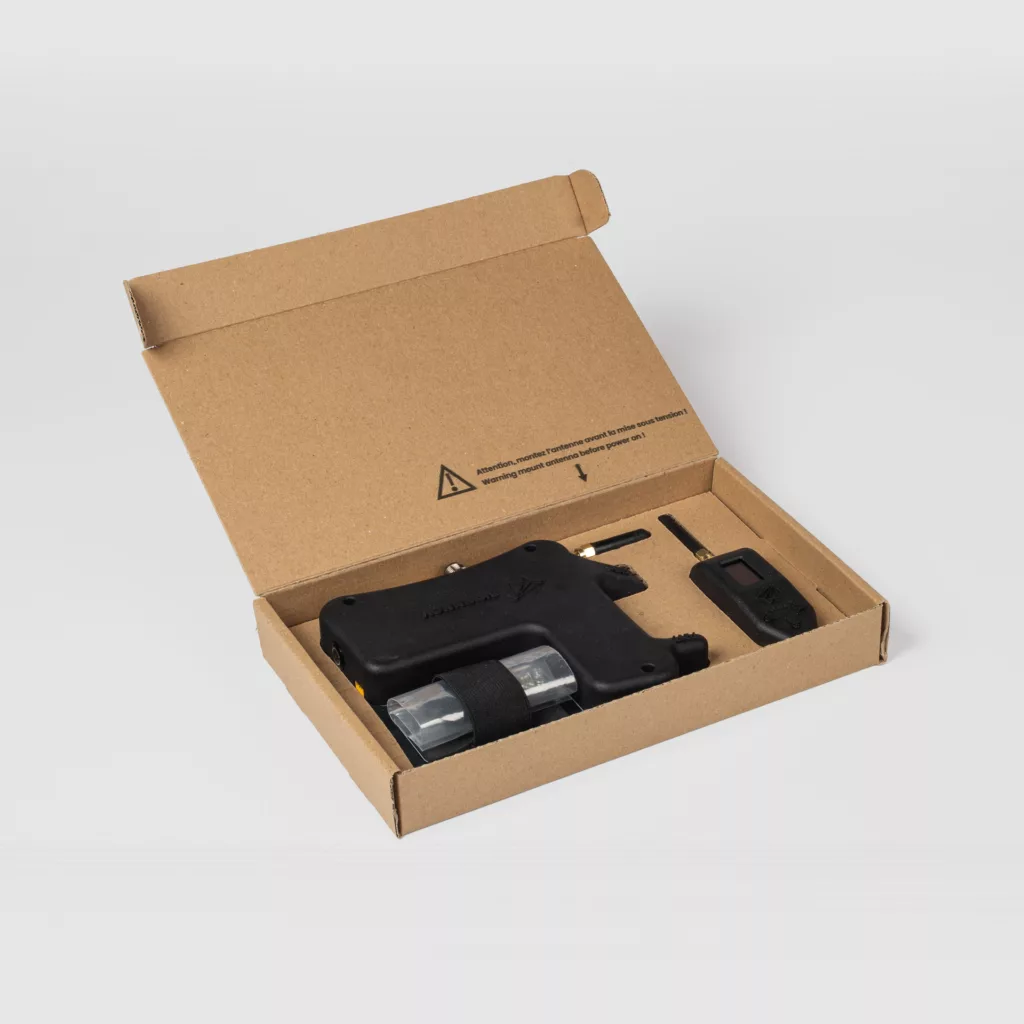

T-Box Pack

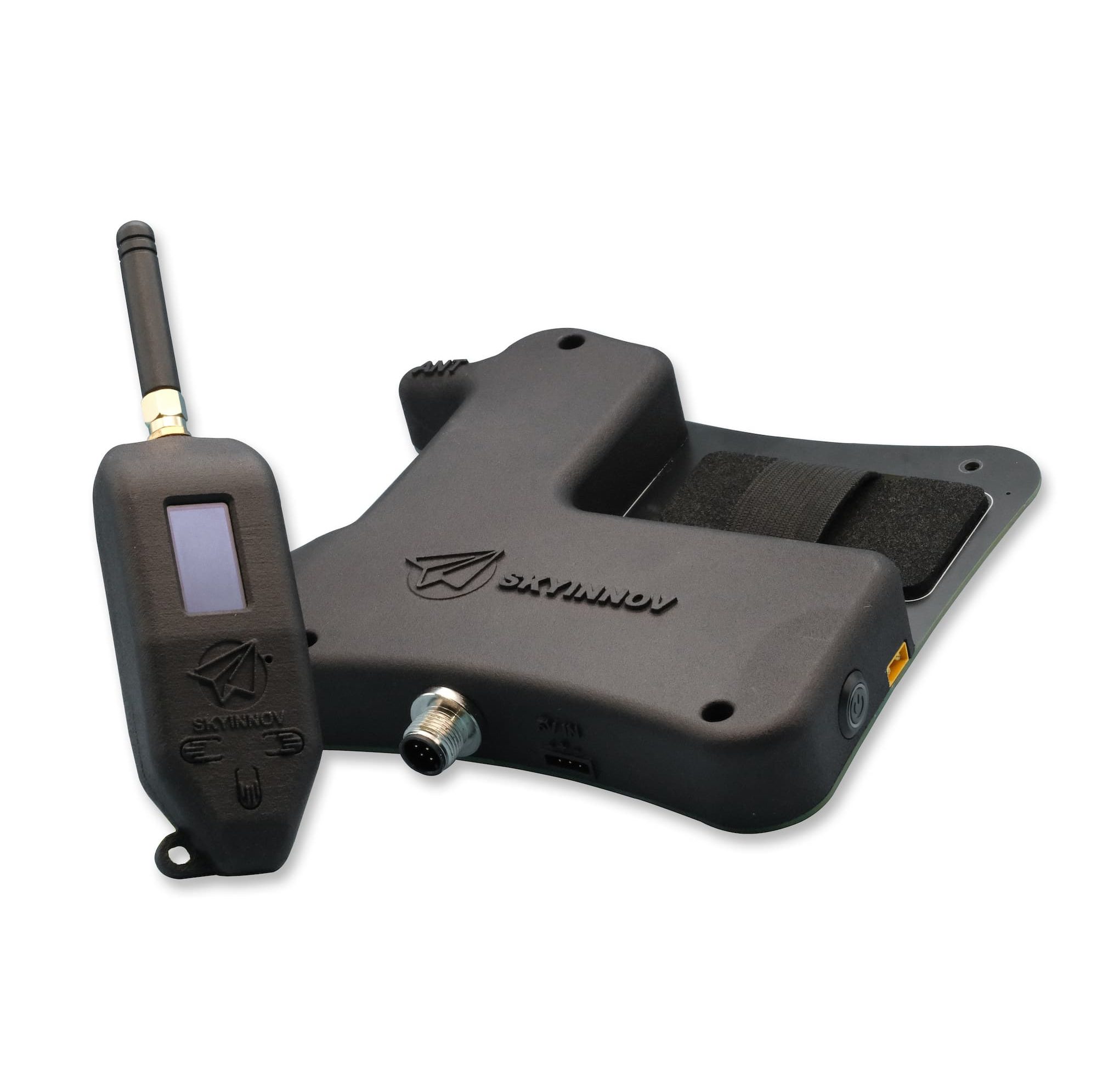

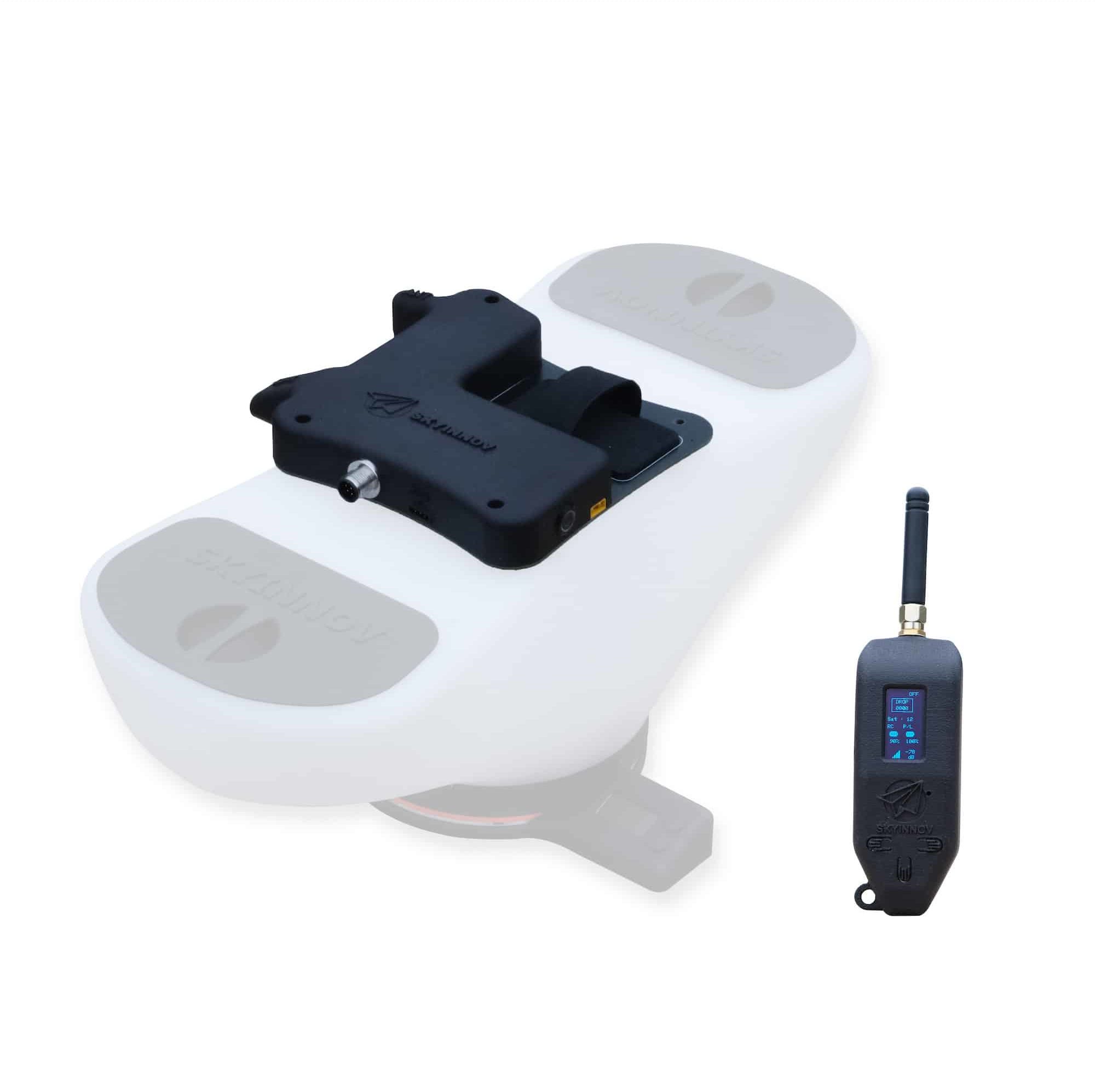

T-BOX: turns T-DROP into a stand-alone spreading system

The T-BOX is a standalone electronic system that allows for remote control of theT-DROP trichogramma spreader. As a result, the T-DROP becomes a universal dispenser compatible with all drones and agricultural machinery.

  • Fastening system for the T-DROP.
  • Works with a 5V power supply or a 2S battery.
  • Remote control with oled screen.
  • Long range connection of loRa type.
  • 2 possible and configurable release modes (Distance or Timer).
  • Log counter displayed on the remote control.

It is therefore a self-contained trichogramme application system that eliminates compatibility problems. Thus, the T-DROP can be mounted on different models of drones including DJI, YUNEEC or any other agricultural machine.

Requires a T-DROP spreading system.


600,00 EXCL. TAX. 720,00 INCL. TAX

In stock

Download the manual
Product has been added to your cart
See cart
DJI compatible T-box

Extended spreading possibilities with T-BOX

The T-BOX housing enables a wide range of applications for our trichogramma spreader. Since the dispersal system is separate from the drone, you can install our T-DROP disperser on any drone capable of carrying it, including DJI and YUNEEC drones or any other agricultural drone. Find our trichogramme pack for DJI Matrice 300 here.

  • Compatibility with the main drones on the market
  • Can be used with other agricultural machines

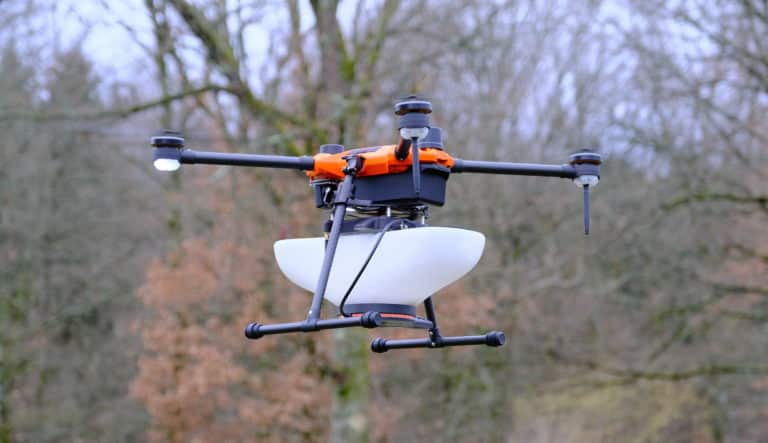

flight drone drop tbox

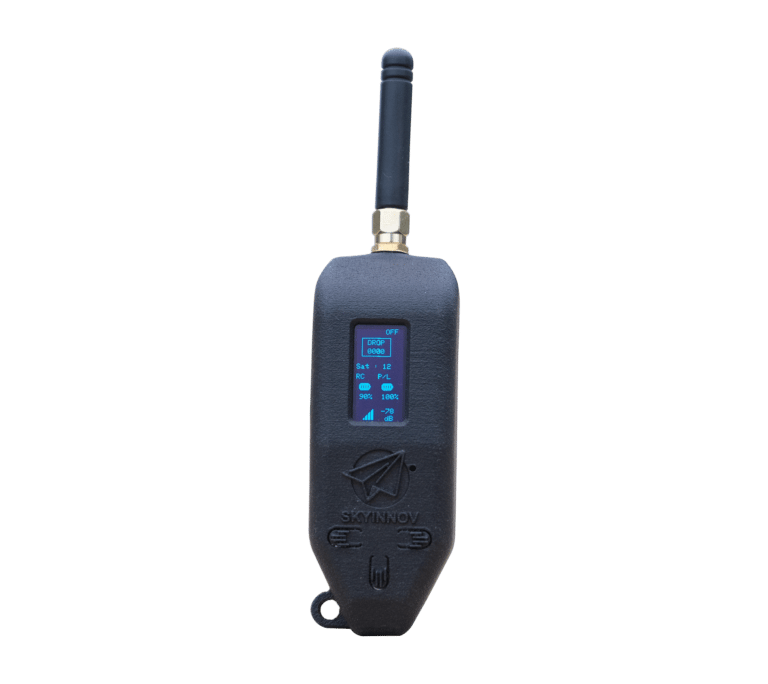

Telecommande Skyinnov

How the T-BOX works

Once equipped with the T-BOX unit, our spreader becomes autonomous. It no longer needs to be connected directly to the drone, since it is controlled remotely via the remote control.

The remote control display shows the spreader’s operating status (on/off) and the number of beads released.

Using the remote control, you can program the release of the pellets using two different trigger modes: by timer (every 0.5, 1, 2, or 3 seconds) or by GPS (every 5, 10, 15, or 20 meters).
Finally, the remote control displays the number of satellites received, the strength of the radio signal, the battery level of the remote control and the onboard battery.

  • Set the flight plan of your drone
  • Program the ball release frequency (distance or timer)
  • Trigger the release with the Start/Stop button
  • Track the number of balls dropped with the built-in counter

TECHNICAL SPECIFICATIONS :

Remote control :

  • Oled screen.
  • Integrated battery.
  • Autonomy: more than 8 hours (about 250 hectares).
  • Rechargeable via micro USB plug.
  • Weight: 60 grams.

Electronic control unit:

  • 868 MHz LoRa connection (range of over 1 km, depending on the environment).
  • Operates on a 5 V power supply or a 2S battery (not included).
  • Recommended battery: 2S Li-Ion 4800 mAh with XT30 connector.
  • Weight: 160 g.
